Additional information
| Kota | Jakarta, Tangerang, Banten, Bekasi, Bogor |
|---|

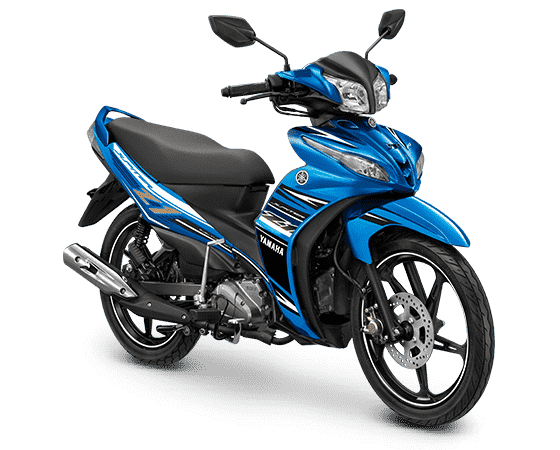

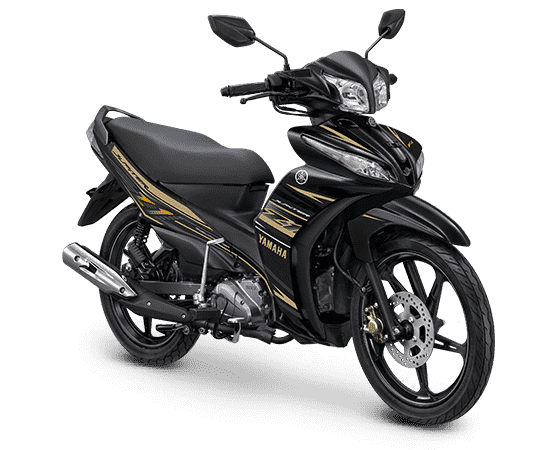

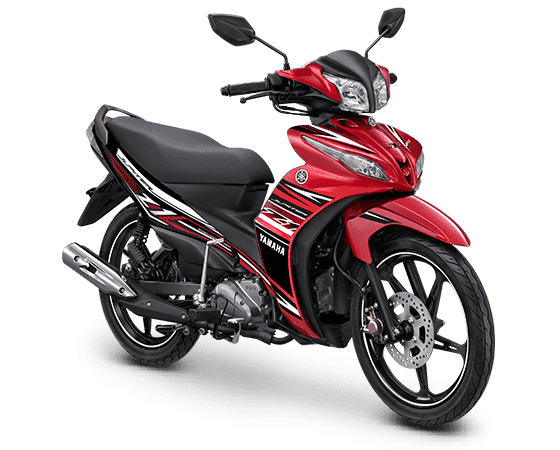

Jup Z1 CW FI
From: Rp 18.110.000
YANG LAIN.. SEMAKIN KETINGGALAN LAGI
Forged Piston, Fuel Injection Yamaha, Aerodynamic Air-Flow System
Spesifikasi Detail:
MESIN
| TIPE MESIN | Air cooled 4-stroke, SOHC |
| JUMLAH / POSISI SILINDER | Single cylinder/Mendatar |
| DIAMETER X LANGKAH | 50,0 x 57,9 mm |
| PERBANDINGAN KOMPRESI | 9,3 : 1 |
| DAYA MAKSIMUM | 7,4 kW / 7750 rpm |
| TORSI MAKSIMUM | 9,8 Nm / 6750 rpm |
| SISTEM STARTER | Elektrik starter & Kickstarter |
| SISTEM PELUMASAN | Basah |
| KAPASITAS OLI MESIN | Total = 1,00 L ; Berkala = 0,80 L ; Ganti filter oli = 0,85 L |
| SISTEM BAHAN BAKAR | Fuel Injection |
| TIPE KOPLING | Basah, Multiplat, Centrifugal automatic |
| TIPE TRANSMISI | Constant mesh, 4-kecepatan |
DIMENSI
| P X L X T | 1935mm X 680mm X 1065mm |
| JARAK SUMBU RODA | 1240mm |
| JARAK TERENDAH KE TANAH | 150mm |
| TINGGI TEMPAT DUDUK | 765mm |
| BERAT ISI | 101 kg (Spoke wheel) ; 102 kg (Cast wheel) |
| KAPASITAS TANGKI BENSIN | 4,1L |
RANGKA
| TIPE RANGKA | Backbone |
| SUSPENSI DEPAN | Teleskopik |
| SUSPENSI BELAKANG | Swing Arm |
| BAN DEPAN | 70/90-17 M/C (38P) |
| BAN BELAKANG | 80/90-17 M/C (44P) |
| REM DEPAN | Single disc brake |
| REM BELAKANG | Drum brake |
KELISTRIKAN
| SISTEM PENGAPIAN | TCI |
| BATTERY | YTZ4V/GTZ4V |
| TIPE BUSI | NGK/CR6HSA |
